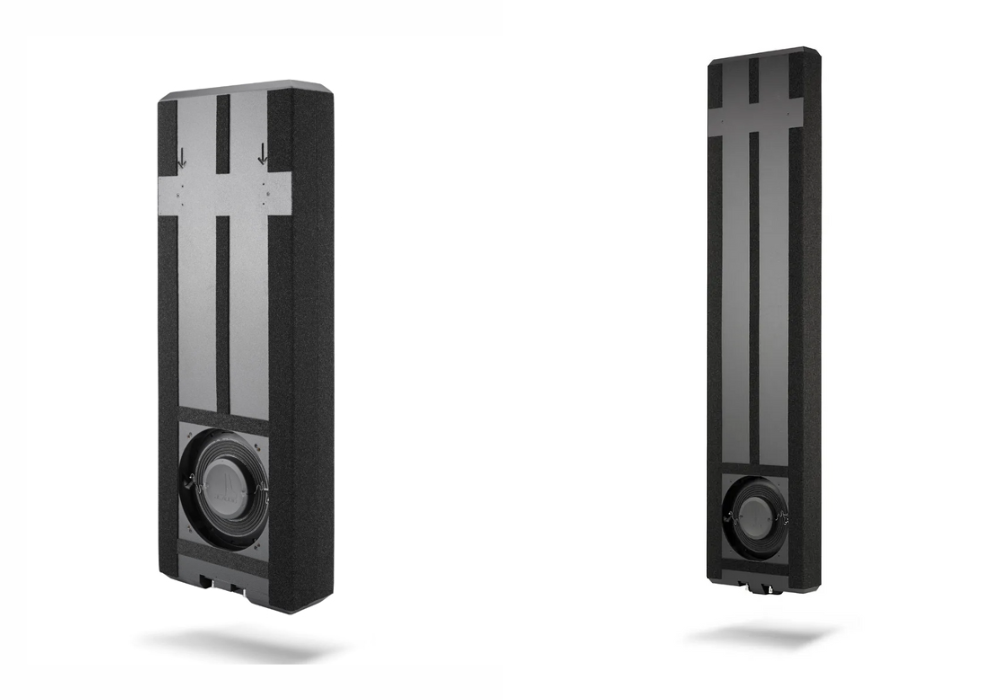

The JL Audio Fathom IWS Subwoofer Range offers discreet bass mastery with four variations—8″ Single In-Ceiling, 8″ Single In-Wall, Dual 8″ In-Ceiling, and Dual 8″ In-Wall—delivering up to 600W of hidden power. Designed for audio connoisseurs seeking powerful bass without visible clutter, it integrates seamlessly into walls or ceilings with a ported enclosure and Digital Automatic Room Optimization (D.A.R.O.). Available at Len Wallis Audio, the JL Audio Fathom IWS Subwoofer Range redefines in-wall and in-ceiling audio performance.

Why Choose the JL Audio Fathom IWS Subwoofer Range?

The JL Audio Fathom IWS Subwoofer Range is a specialized solution for audiophiles who want powerful bass without compromising room aesthetics. Available in 8″ single or dual configurations, it offers flexible in-wall or in-ceiling installation options.

The Dual 8″ model delivers 600W of short-term power, while the 8″ single offers 300W for deep, impactful bass. The Absolute Sound in 2019 reviewed the single in-wall, praising its “astonishing low-end power” in a hidden design.

Both models reach down to 24.9 Hz (±1.5 dB), capturing deep rumbles with precision in a ported enclosure. The design ensures a 10% tighter bass response compared to traditional in-wall subwoofers, thanks to optimised port tuning.

The amplifier weighs just 6.12 kg, with a slim 44 mm height for easy rack mounting. The subwoofer’s compact grille (267 mm x 267 mm) blends seamlessly into your wall or ceiling for a clean look.

Not sure how to optimise bass in a tricky room? The Fathom IWS’s D.A.R.O. technology auto-calibrates settings with a separately sold microphone, while variable phase (0 to 280°) and filter controls (30 Hz to 130.1 Hz) fine-tune performance.

It features RCA inputs and Neutrik speakON outputs for secure connectivity. A 12V trigger output (150 mA) allows integration with home automation systems for effortless control.

Experience the JL Audio Fathom IWS Subwoofer Range at Len Wallis Audio. Discover why it’s the ultimate choice for audio connoisseurs seeking discreet bass mastery in their spaces.

Technical Specifications

Technical Specifications for 8″ Single Model

• Driver Size: 1 x 8″ high-performance
• Amplifier Power: 300W short-term (RMS)
• Frequency Response (Anechoic): 24.9 Hz – 109 Hz (±1.5 dB)
• Effective Piston Area (SD): 31.62 in² (0.0204 m²)
• Effective Displacement: 47.5 cu in (0.78 L)

Technical Specifications for Dual 8″ Model

• Driver Size: 2 x 8″ high-performance
• Amplifier Power: 600W short-term (RMS)
• Frequency Response (Anechoic): 24.9 Hz – 109 Hz (±1.5 dB)
• Effective Piston Area (SD): 63.24 in² (0.0408 m²)
• Effective Displacement: 95.0 cu in (1.56 L)

Enclosure Specifications for Stud Construction (2″ x 4″ Stud)

• Cavity Width (Min/Max): 14.375″ (365 mm) / 15.5″ (394 mm)
• Cavity Height (Min): 75″ (1,905 mm)
• Dimensions (H x W x D): 1,834 x 355 x 83 mm

Enclosure Specifications for Stud Construction (2″ x 6″ Stud)

• Cavity Width (Min/Max): 16″ (406 mm) / 25.5″ (648 mm) on-center
• Cavity Height (Min): 58″ (1,473 mm)
• Dimensions (H x W x D): 1,034 x 355 x 130 mm

Shared Specifications for All Models

• Enclosure Type: Ported for deep bass response
• Inputs: Stereo or mono RCA (two jacks)
• Outputs: Neutrik speakON 2-pole connectors
• Low-Pass Filter Range: 30 Hz – 130.1 Hz, 12/24 dB/octave slope
• Phase Control: Variable, 0 – 280°
• Grille Dimensions (W x H): 267 x 267 mm
• Amplifier Dimensions (H x W x D): 44 x 428 x 346 mm

Read the review here.

Elevate your audio with the JL Audio Fathom IWS Subwoofer Range at Len Wallis Audio. Browse our curated collection of JL Audio products here or contact us today to secure the JL Audio Fathom IWS Subwoofer Range and experience bass at its finest.

Len Wallis Audio Excellence Promise

Since 1978, Len Wallis Audio has been a trusted name in hi-fi, curating premium audio solutions from our Lane Cove showroom in Sydney. For over four decades, we’ve selected products that deliver outstanding performance and quality.

Our focus on innovation ensures every item meets audiophile standards. Whether upgrading or building a new system, our team helps you find the ideal audio solution for your needs.

With expert guidance and a commitment to satisfaction, we make your audio journey seamless and rewarding.

Ready to enhance your setup with the JL Audio Fathom IWS Subwoofer Range?
