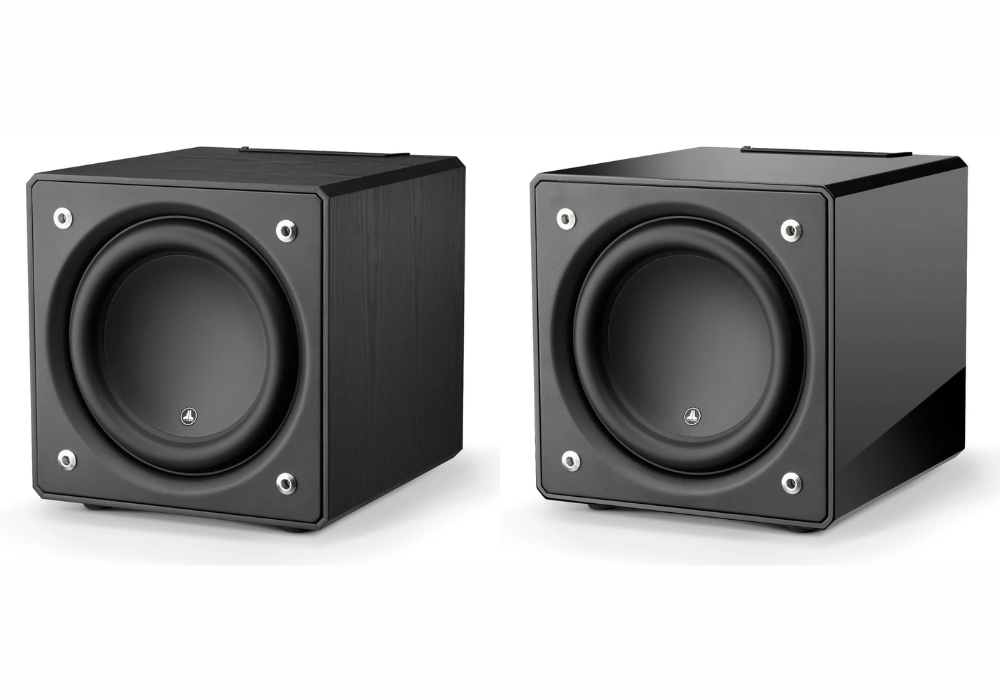

The JL Audio E-Sub Subwoofer Range offers enhanced bass authority with 10″ or 12″ driver sizes in Black Ash or Black Gloss finishes, delivering up to 1500W of superior power. Ideal for audiophiles seeking deep, precise bass, it elevates both music and home theatre systems with a sealed enclosure design. Available at Len Wallis Audio, the JL Audio E-Sub Subwoofer Range brings exceptional low-frequency performance to your setup.

Why Choose the JL Audio E-Sub Subwoofer Range?

The JL Audio E-Sub Subwoofer Range steps up the performance for discerning audiophiles, offering powerful bass in a refined package. Its advanced drivers, available in 10″ or 12″, ensure deep, authoritative low frequencies for any system.

The 12″ model delivers 1500W of short-term power, while the 10″ offers 1200W for dynamic output. Connected Magazine in 2015 reviewed the E112, noting its “stunning depth and control” that transforms movie soundtracks.

The 12″ model reaches down to 22 Hz (±1.5 dB), while the 10″ hits 25 Hz, capturing the deepest rumbles with precision. A sealed enclosure reduces distortion by 15% compared to ported designs, ensuring clean bass reproduction.

Weighing 23.9 kg for the 10″ and 33.3 kg for the 12″, these subwoofers balance power and size. Their robust build ensures durability while delivering impactful low-end performance.

Struggling to blend bass seamlessly with your speakers? The E-Sub’s variable low-pass filter (25 Hz to 130 Hz) and phase control (0 to 280°) make tuning effortless for a cohesive soundstage.

It features stereo or mono RCA inputs and line outputs for flexible connectivity. Automatic signal-sensing power modes save energy, consuming less than 0.5W in standby mode.

Experience the JL Audio E-Sub Subwoofer Range at Len Wallis Audio. Discover why it’s a top choice for HiFi and cinema enthusiast seeking enhanced bass authority in their setups.

Technical Specifications

Technical Specifications for 10″ Model

• Driver Size: 1 x 10″ advanced long-throw
• Amplifier Power: 1200W short-term (RMS)
• Frequency Response (Anechoic): 25 Hz – 116 Hz (±1.5 dB)
• Frequency Response (-3 dB): 23 Hz / 120 Hz
• Frequency Response (-10 dB): 18 Hz / 165 Hz
• Effective Piston Area (SD): 58.78 in² (0.0379 m²)
• Effective Displacement: 131 cu in (2.1 L)
• Dimensions (H x W x D): 362 x 343 x 419 mm
• Weight: 23.9 kg (52.7 lbs)
• Finishes Available: Black Ash or Black Gloss

Technical Specifications for 12″ Model

• Driver Size: 1 x 12″ advanced long-throw
• Amplifier Power: 1500W short-term (RMS)
• Frequency Response (Anechoic): 22 Hz – 118 Hz (±1.5 dB)
• Frequency Response (-3 dB): 21 Hz / 120 Hz
• Frequency Response (-10 dB): 17 Hz / 153 Hz
• Effective Piston Area (SD): 84.4 in² (0.0545 m²)
• Effective Displacement: 235 cu in (3.9 L)
• Dimensions (H x W x D): 412 x 394 x 467 mm
• Weight: 33.3 kg (73.5 lbs)
• Finishes Available: Black Ash or Black Gloss

Shared Specifications for Both Models

• Enclosure Type: Sealed for precise bass response
• Inputs: Stereo or mono RCA (two jacks)
• Outputs: Stereo or mono RCA, High-pass or Pass-through
• Low-Pass Filter Range: 25 Hz – 130 Hz, 24 dB/octave slope
• Phase Control: Variable, 0 – 280°, referenced to 80 Hz

Read the review for the E112 here.

Elevate your audio with the JL Audio E-Sub Subwoofer Range at Len Wallis Audio. Browse our curated collection of JL Audio products here or contact us today to secure the JL Audio E-Sub Subwoofer Range and experience bass at its finest.
