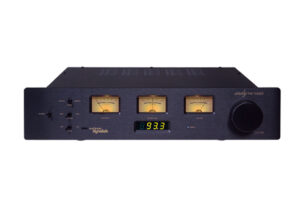

Magnum Dynalab MD90SE FM Tuner – Stunning Audio Performance

Magnum Dynalab MD90SE FM Tuner – Stunning Audio Performance

$2,599

The Magnum Dynalab MD90SE FM Tuner offers superior audio performance with enhanced features, including an upgraded audio section with Solen polypropylene capacitors, balanced output, and a precision brass tuning mechanism. It replaces the MD100 and adds new options like a silver faceplate, precision remote control, and Burr Brown DAC for up-converting and oversampling to 24/192. Experience unmatched FM quality with this advanced tuner.

Local pickup or $11 flat rate shipping within Australia

Magnum Dynalab MD90SE FM Tuner at Len Wallis Audio The Magnum Dynalab MD90SE FM Tuner is an evolution of the acclaimed MD100

Delivering the same reliable performance with added enhancements that set it apart.

This tuner is designed for the discerning audiophile, featuring an upgraded audio section with Solen polypropylene capacitors and bypass caps for superior sound clarity.

The inclusion of balanced outputs ensures a pristine signal path, while the brass flywheel and brass clutch precision tuning mechanism allow for precise and smooth station selection.


Magnum Dynalab MD90SE FM Tuner at Len Wallis Audio Additional features of the Magnum Dynalab MD90SE FM Tuner include a silver faceplate option for a sleek aesthetic, a precision remote control for convenient operation, and a Burr Brown up-converting and oversampling DAC that elevates the audio experience to 24/192 quality.

For those seeking even greater performance, an optional audio upgrade to the 105 model is available. With the Magnum Dynalab MD90SE FM Tuner, enjoy an unparalleled FM listening experience that combines cutting-edge technology with timeless craftsmanship. Click here to know more about this impressive piece of audio engineering.

Contact our team if you have any questions about the Magnum Dynalab MD90SE FM Tuner.

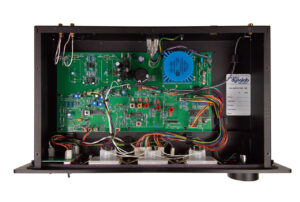

The front end of the Magnum Dynalab MD90SE FM Tuner is an exclusive component, designed and manufactured in-house, making Magnum Dynalab the only company in the world to produce its own R.F. front-end. This is done because no other manufacturer can meet the company’s exacting specifications. The front-end’s role in a tuner is comparable to a high-performance laser mechanism in a CD transport, as it must capture the FM signal while isolating it from environmental aberrations and interference from adjacent FM stations. Magnum Dynalab’s stringent criteria for its tuners and their front-ends ensure the highest level of FM reception consistency available in the industry.

To meet all specifications across all frequencies, Magnum Dynalab manually aligns its tuners’ front-ends at three frequencies (92 MHz, 101.5 MHz, and 106 MHz). This process optimizes tuning performance across the entire FM band, ensuring consistent quality regardless of the tuned frequency. These procedures also maintain a balance between sensitivity, selectivity, and musicality. As a result, the tuner is optimized to reject strong adjacent channel noise, deliver consistent tuning performance across the FM band, and isolate the desired station from extraneous FM signal interference with superior precision.


Specification Details
Usable sensitivity Mono – 0.7 uV 9.0 dBf
50 dB quieting – Mono 2.0 uV 9.9 dBf
50 dB quieting – Stereo 2.3 uV 25.0 dBf
Capture ratio 1.5 dB
Image rejection 110.0 dB
Signal to noise ratio 80.0 dB
Alternate channel – Wide 40.0 dB
Alternate channel – Narrow 70.0 dB
Adjacent channel – Wide 3.0 dB
Adjacent channel – Narrow 35.0 dB
THD – Mono 0.10 %
THD – Stereo 0.18 %
Stereo separation 50.0 dB
AM suppression 70.0 dB
SCA rejection 80.0 dB
IF rejection 80.0 dB
19 KHz and 38 KHz component rejection 75.0 dB
Audio frequency response (+/- 1 dB) 15 Hz – 17 KHz
Balanced audio output (600 ohms) 2.2 V
Line audio output (RCA) 1.0 V
Line power (Must be specified) 110/220/230/240- VAC
Dimensions (inches H.W.D.) 4 x 17.75 x 13
Dimensions (cm H.W.D.) 11.43 x 48.3 x 38.1
Weight (lbs./kgs) 18/7.96
Power consumption (Typ/Max) 50w/100w
Tube Specifications
Filament current (max) 330 mA (min) 270 mA
Anode current (1) (max) 1.07 mA (min) 0.92 mA
Anode current (2) (max) 1.07 mA (min) 0.92 mA
Total harmonic distortion < 1.8%
