Because the speaker cable carries the largest current in the entire device chain, a suitable conductor cross-section is required to transport it with as little loss as possible. This current generates correspondingly strong magnetic fields and, since it is alternating current, there is a frequency-dependent resistance in the inductance of the cable.

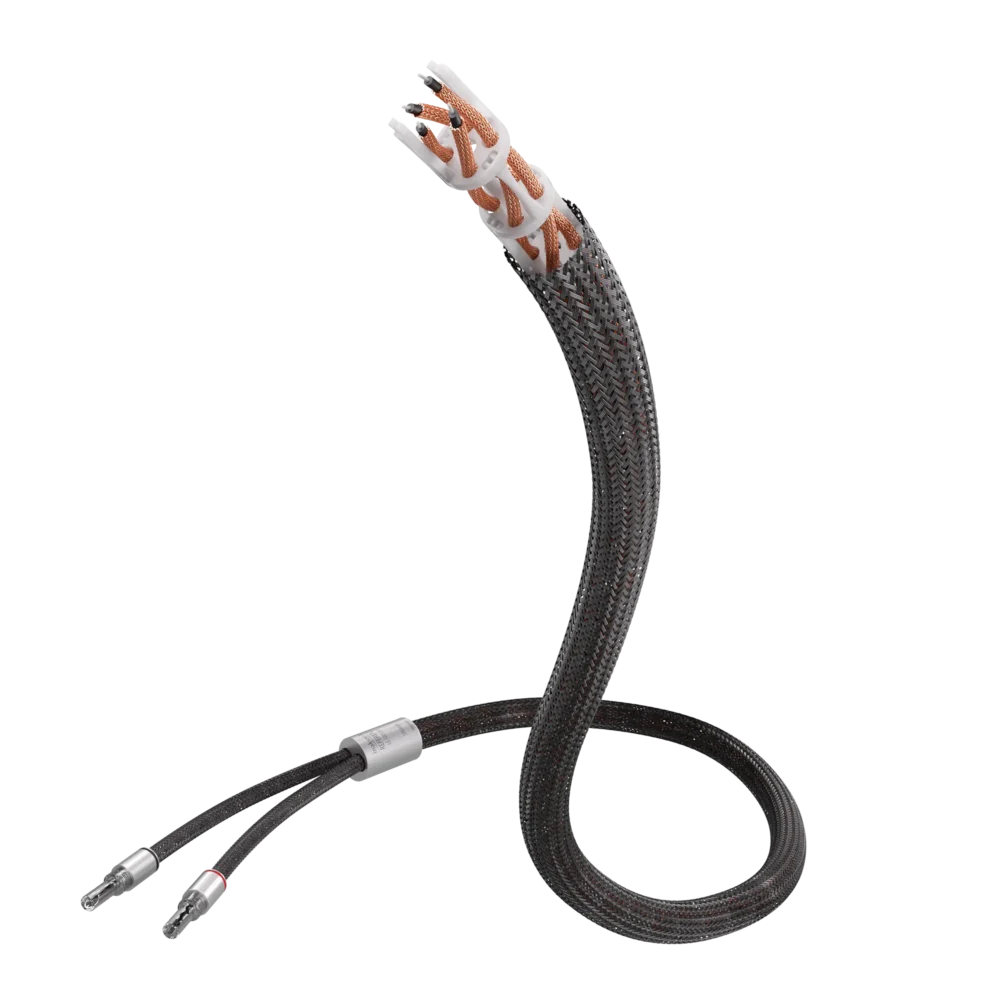

Low inductance is therefore particularly important for speaker cables – and this is precisely what has been achieved with the LS-1205 Air: The cable’s inductance value has been reduced by a particularly ingenious arrangement of the conductors, the 4-fold “multicore” structure, enabling it to behave in a completely sound-neutral way over a wide frequency range. In addition, the magnetic fields generated around the individual conductors overlap and neutralize each other. This means that all frequencies are transported unhindered and without any time delay, enabling a fabulously open and detailed musical presentation. At the end of the air helix, the LS-1205 Air’s four conductors are separated into so-called aluminum splitters for the receiving connector.

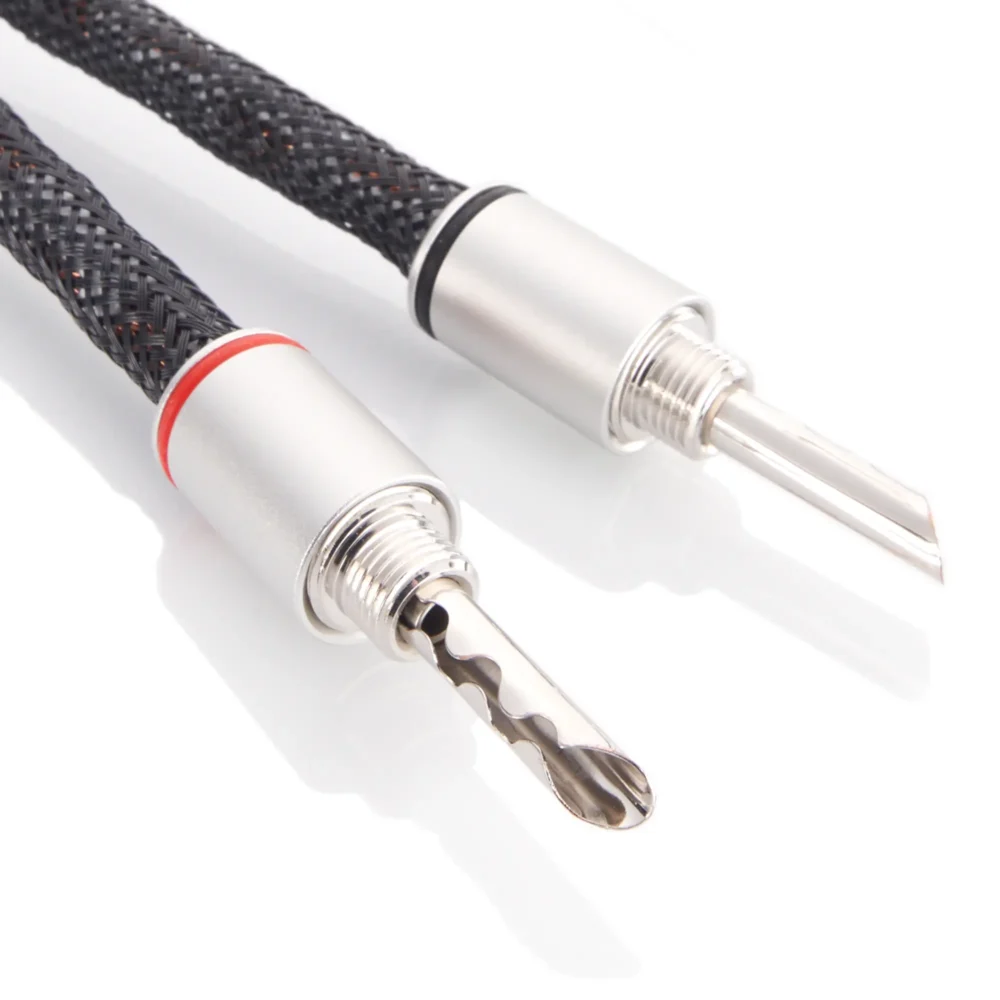

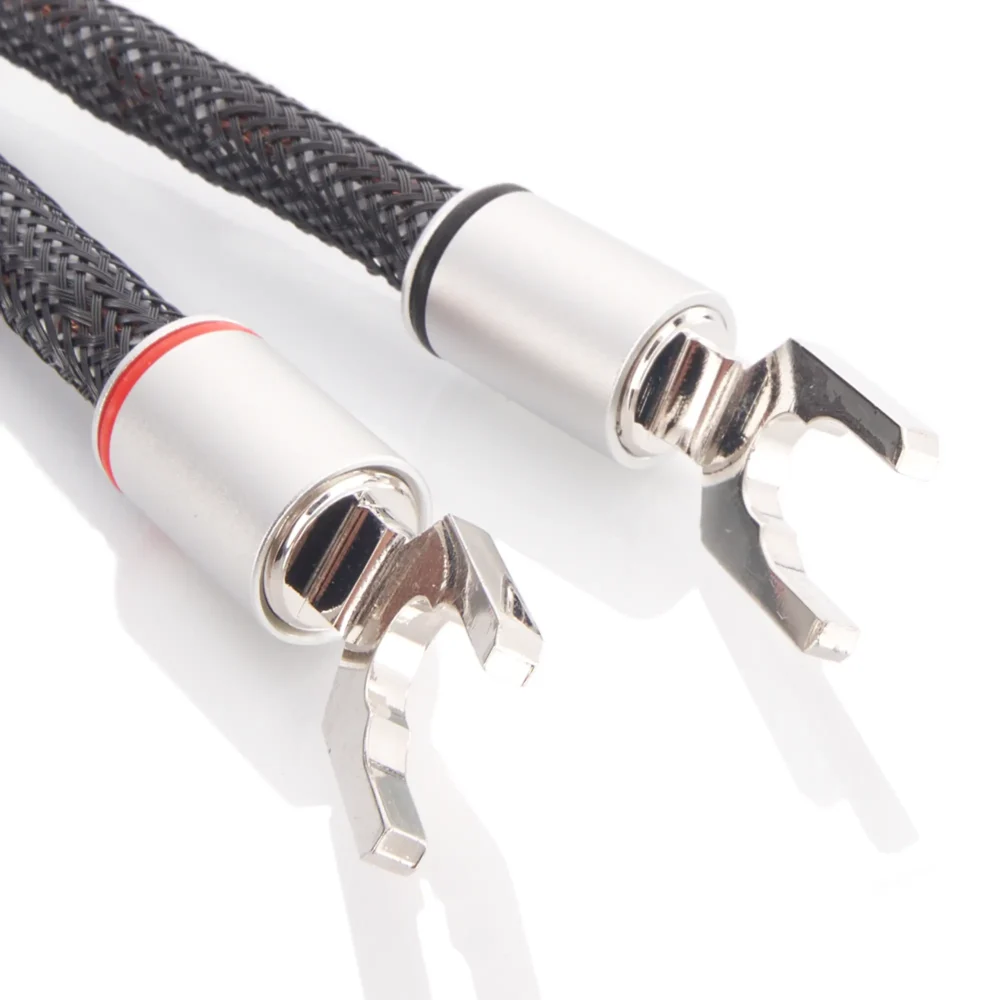

In the area between the splitters and plug, in-akustik uses highly flexible molded parts made of a special elastomer. These parts are fixed inside the splitter using a specifically designed plastic plug. This means that the cable remains reliably flexible in the connection area as well. The molded parts run right to the front of the connectors and enclose their inner workings – which underscores the sleek yet attractive design of the LS-1205 Air.

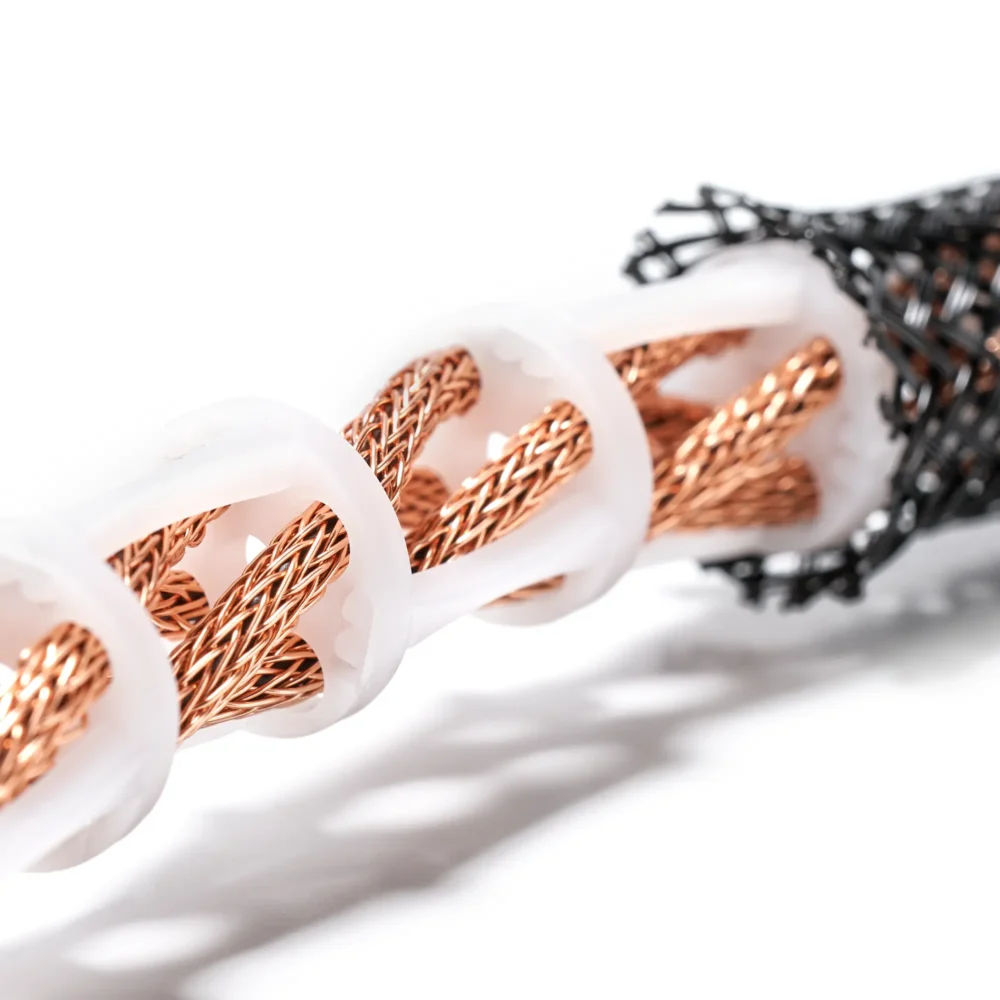

Thanks to the Air Helix design, the conductors run freely suspended through the length of the cable.
The Air Helix architecture permits signal conductors to be insulated to practically 100% by air. Special clips were developed to provide the supporting framework. Positioned at defined intervals inside the cables, these clips keep the helically-arranged conductors apart. Cable flexibility is assured by means of two struts that ensure the clips remain together but also at a precise distance from each other. This architecture is unique, bringing low capacitance and minimum dielectric losses – a true milestone in the search for open and unadulterated sound.

Our physical approach: Minimize losses for true-to-original playback.
Our Referenz AIR cables transport audio signals between source, amplifier and speaker in an authentic way and with a minimum of loss. You can enjoy music that precisely expresses the emotions of the artists at the time of recording – sensual, subtle, light-hearted or orchestral right through to full-blooded and rocking. Vocals and instruments are delivered in unadulterated form. Everything remains vibrant and full of emotive energy. Favorite tracks and pieces continue to trigger strong feelings even when you’ve heard them a hundred time over.
