Technics
SL-G700E Multi-Format Digital Media Player

Technics
SL-G700E Multi-Format Digital Media Player

$4,949

The SL-G700E is a multi-format digital media player which covers the majority of digital audio media available today, from traditional SACD/CD to the latest high-res formats and many streaming services.

Local pickup or $11 flat rate shipping within Australia

Key Features – Grand Class high quality sound

Premium High-grade D/A Converter AK4497, and Dual Mono Construction D/A Circuit, Variable Analog Audio Output
Discrete AMP Module
Battery Driven Clock Generator
High-speed Silent Hybrid Power Supply
Digital Noise Isolation Architecture
Supports Higher Grade Headphone Connection with Integrated Class AA Headphone AMP
Pure Disc Playback Mode for SACD/CD Playback for Greater Sound Purity
High-Res Re-master

Supports a Wide Variety of Music Sources and High Connectivity

Concept of wide variety of Music Sources
The SL-G700 supports Bluetooth®, Wi-Fi, and AirPlay 2 with its high wireless connectivity. It is also compatible with streaming services, such as Spotify, TIDAL, and Internet Radio, and functions such as the Google Assistant.*
* A Google Voice-activated Speaker must be included in the same network.

Grand Class, High-quality Sound Design

Photo of Four Section Configuration of SL-G700
The New SL-G700 Network / Super Audio CD Player. The SL-G700 is a multi-digital player that covers most of the digital audio media available today, from traditional SACD/CD to the latest high-res and many streaming services, and plays them all back in the highest possible quality.

Premium High-grade D/A Converter and Dual Mono Construction D/A Circuit

Dual Mono Construction D/A circuit, Image of Dual Mono Construction, Asahi-Kasei Flag-Ship Premium DAC AK4497, Image of Asahi-Kasei Premium DAC, Power Supply for DAC, Graphic of Power Supply for DAC
For analogue audio output, the D/A circuit is one of the most important circuit blocks since it recreates the original analogue waveform from a digital source, such as a CD. For the D/A converters, Asahi Kasei Micro devices’ top-of-the-line DAC AK4497, with their high S/N ratio and low distortion, are isolated for the left and right channels. The power supply for the D/A converters is separated into five sections according to the application, and supplied individually. The power supply for the clock employs an original Battery Driven Circuit System to achieve high-accuracy D/A conversion. The Dual Mono Construction and asymmetrical layout eliminate mutual interference between left and right channels, taking the reproduction of sound imaging and sound space recorded in the source to a higher dimension.

Discrete AMP Module

Discrete Amp Module, Photo of Discrete AMP Module, Filter Circuit after D/A Conversion, Graphic of Filter Circuit alter D/A Converson, Internal Structure of Discrete AMP Module, Graphic of Structure of Discrete Amp Module, An amp structure with a folded cascode offering superb high-frequency characteristics
For analogue audio output, the filter circuit located after the D/A conversion determines the quality of sound. The SL-G700’s filter circuit incorporates not an Opamp IC but an amp module of original discrete construction. The use of low-noise transistors and thin-film resistors suppresses the noise generated inside the circuits. Detailed fine tuning, such as the increase of operating current, has improved the response, S/N ratio and distortion rate. As result, the SL-G700 provides highly linear and faithful sound reproduction without omitting even the smallest nuances recorded in the source.

High-speed Silent Hybrid Power Supply

Dedicated Power Supply for Analogue Audio, Photo of Dedicated Power Supply for Analogue Audio, Power Supply Block Diagram, Graphic of Power Supply Block Diagram, Power Supply Output FFT Level Realises a lower noise floor than analogue power supply, Chart of Power Supply Output FFT Level, Loaded Current Compared with Analogue Audio Power supply, Analogue Power Supply for Audio use, Chart of Output Voltage and Chart of Output Voltage and Loaded Current Compared with Analogue Audio Power supply, SL-G700, Chart of Output Voltage and Loaded Current Compared with Analogue Audio Power supply
The quality of power supply is extremely important for high-fidelity sound reproduction. Power supply noise and supply stability directly affect the quality of sound reproduced from audio signals, particularly for analogue audio output. The SL-G700 is equipped with a dedicated power supply unit for analogue audio output. Its non-feedback switching power supply suppresses switching frequency fluctuation. Combined with the original stabilised power supply circuit, this dedicated power supply unit provides stable power with low noise. The discrete circuit structure does not use any general-purpose ICs, and meticulous tuning provides power optimised for analogue circuits, thus realising a high S/N ratio and superb reproduction, the hallmark of Technics sound.

High-quality Headphone Output

Graphic ofof High-quality Headphone Output, Graphic of Class AA System, A: Voltage Control Amp Ideal voltage amplification by the dedicated operation amp, B: Power Supply Amp Necessary current is supplied by the dedicated operation amp
Generally, the analogue output signal (Balanced / Unbalanced) and headphone output signal are generated by the same D/A circuit. The SL-G700 is equipped with a dedicated D/A circuit for headphones which is independent from that for analogue output. This circuitry incorporates Technics’ original sound processing LSI, the JENO Engine (Jitter Elimination and Noise-shaping Optimisation). Complete separation of the analogue output from the headphone output has eliminated the mutual interference between the two circuits that serve different purposes. In addition, each circuit receives the most suitable sound tuning. As a result, both outputs provide maximum performance. Furthermore, the SL-G700 is equipped with an operation optimisation system that automatically turns on the JENO Engine when a pair of headphones is connected. This eliminates the adverse effect of the analogue output on the sound quality when headphones are not connected.

Noiseless Signal Technology Battery Driven Clock Generator

In the processing of digital audio signals, the quality of the clock affects the sound quality to a large extent. The best power supply for delicate circuitry such as the Clock block in the DAC and the audio system clock circuit is one entirely isolated from any noise or fluctuations in the mains supply. Technics has extensive experience in isolating the power supply using a battery. This technology creates low-noise digital audio interfaces including D/A convertors. Additionally, the audio system clock is supplied from an Ultra Low Jitter Clock Generator. A low-noise power supply and a high-quality clock circuit realise a sound with transparency.

Digital Noise Isolation Architecture For the USB input terminals, the amplifier includes power conditioners using non-magnetic carbon film resistors with strong protection against magnetic distortion and using capacitors of high-quality ruby mica excellent in characteristics such as low dielectric loss, high voltage resistance, and temperature stability. In addition, pursuing high reproducibility of sound by various noise countermeasures, such as installation of low ESR film capacitor to LAN terminal power supply and isolation by pulse transformer in digital output signal.

Optimally Activated Circuit System The Optimally Activated Circuit System allows the operation of various digital modules to be stopped – such as those used for display, analogue and digital interfaces – to minimise the noise generated when music is playing. In addition, the Pure Disc Playback Mode completely shuts off the Network Interface circuit to further raise the sound quality of SACD/CD playback.

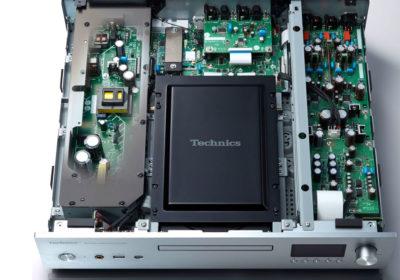

Four-Section Configuration

Photo of Four-Section Configuration
In Digital Audio Player, there are a variety of circuits, such as Switching Power Supply which has big energy and the Digital Interface Circuit which handling high frequency signal, and also analogue circuit. The SL-G700 uses a Four-Section construction with partitions installed between the circuit blocks according to the signal level handled and circuit type.This eliminates interference between circuit blocks, thus achieving clear sound quality. Also, the chassis rigidity due to this construction suppresses the vibration of electrical parts, thereby suppressing deterioration in sound quality.

High-Rigidity Drive Mechanism

Photo of High-Rigidity Drive Mechanism
In the playback of a disc, the reading accuracy determines the sound quality. The CD drive mechanism features a triple chassis structure to ensure accurate reading and to prevent the vibration from transmitting to the outside of the mechanism. Moreover, the SL-G700 has a stable, aluminium die-cast disc tray with a high-vibration-damping, quiet structure to ensure high-accuracy disc playback.

High-quality Technics Design

  • Four-Section Configuration
  • High-Rigidity Chassis and Aluminium Die-cast Disc Tray – High-Stability SACD Mechanism
  • 7mm Thick Aluminium Plate Used for the Front Panel
  • Control Port for System Control with SU-G700

Disc Compatibility

  • Super Audio CD (2 ch area only)
  • CD
  • CD-R
  • CD-RW

Disc Format

  • Super Audio CD
  • CD-DA

Frequency Response

  • Super Audio CD: 2 Hz to 50 kHz (-3 dB)
  • CD: 2Hz to 20 kHz (-3 dB)

Dynamic Range (IHF-A)

  • Super Audio CD
    • BALANCED: 118dB (IHF-A)
    • UNBALANCED: 115dB (IHF-A)
  • CD
    • BALANCED: 98dB (IHF-A)
    • UNBALANCED: 98dB (IHF-A)

Signal to Noise Ratio (IHF-A)

  • BALANCED: 121 dB (IHF-A)
  • UNBALANCED: 118 dB (IHF-A)

THD+N

  • Super Audio CD: 0.0006% (1 kHz, 0 dB)
  • CD: 0.0015% (1 kHz, 0 dB)

Digital Input Terminal

  • Coaxial Digital x 1
  • Optical Digital x 1
  • USB-A x 2

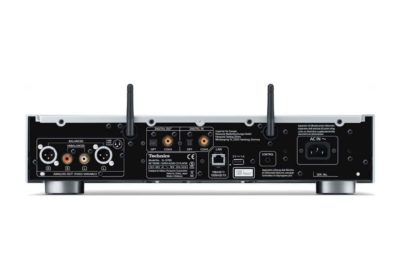

Analogue Output Terminal

  • BALANCED x 1
  • UNBALANCED x 1
  • Support Variable Level Output

Digital output Terminal

  • Coaxial Digital x 1
  • Optical Digital x 1

System Port

  • System Control Input / Output (Φ3.5 mm Jack)

Headphone Output

  • Yes(Φ6.3 mm, 110 mV, 32 Ω VOL MAX)

USB-A Support Codec

  • WAV (32bit, 384kHz)
  • FLAC (24bit, 384kHz)
  • DSD (Up to 11.2MHz)
  • AIFF (32bit, 384kHz)
  • ALAC (24bit, 384kHz)
  • AAC (320kbps)
  • MP3 (320kbps)

Network Playback Support Codec

  • WAV (32bit, 384kHz)
  • FLAC (24bit, 384kHz)
  • DSD (Up to 11.2MHz)
  • AIFF (32bit, 384kHz)
  • ALAC (24bit, 384kHz)
  • AAC (320kbps)
  • MP3 (320kbps)

Ethernet Interface

  • LAN (100 Base-TX / 10 Base-T)

Wi-Fi

  • IEEE 802.11 a/b/g/n/ac, 2.4 GHz / 5 GHz Band

Bluetooth(Support codec)

  • Yes (AAC, SBC)

Power Supply

  • AC 220-240 V, 50 Hz / 60 Hz

Power Consumption

  • 38W

Dimensions

  • 430mm Width
  • 98mm Height
  • 407mm Depth

Weight

  • Approx. 12.2 kg

Accessories

  • Remote Control
  • AC Cord
  • System Connection Cable
  • Analogue Audio cable
  • Operating Instructions
Weight 12.2 kg
Dimensions 407 × 430 × 98 mm
