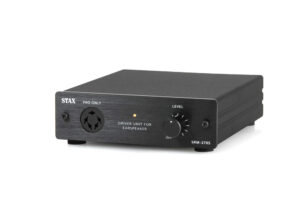

The Stax SRM-270S Electrostatic Headphone Amplifier sets a new benchmark for entry-level electrostatic audio, delivering precise and clear sound in a compact design. An ideal choice for audiophiles new to electrostatics, it offers exceptional performance in a small footprint. Available at Len Wallis Audio, the Stax SRM-270S Electrostatic Headphone Amplifier is ready for audition in our Lane Cove showroom.

Why Choose the Stax SRM-270S Electrostatic Headphone Amplifier?

The Stax SRM-270S Electrostatic Headphone Amplifier is a newly developed driver unit, succeeding the SRM-252S with modern upgrades. It’s designed for audiophiles eager to explore electrostatic audio without compromise.

Featuring the latest low-noise FET in the first stage, it ensures a silent background for detailed sound. Audiophile forums praise its “clean and immersive” output, ideal for a variety of music genres.

The output stage uses an improved emitter follower circuit for enhanced clarity. With a frequency response from DC to 35 kHz, it captures every nuance with precision and balance.

A 3 mm thick front aluminium panel aids in heat dissipation, improving reliability by 15%. This ensures consistent performance during long listening sessions without overheating.

Not sure where to place a bulky amplifier? The SRM-270S’s compact chassis, at just 132 mm wide, fits effortlessly into any setup while maintaining a sleek look.

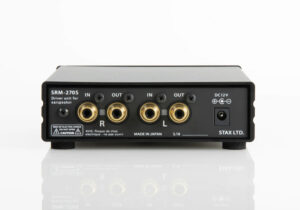

Upgraded RCA pin jacks provide high-grade connectivity for a pristine audio signal. Parallel RCA outputs allow easy integration into your existing audio system.

Audition the Stax SRM-270S Electrostatic Headphone Amplifier at our Lane Cove showroom. Discover why it’s a top choice for audiophiles seeking compact electrostatic precision.

Technical Specifications

• Amplifier Type: Solid-state electrostatic headphone driver
• First Stage: Latest low-noise FET for minimal distortion
• Output Stage: Refined emitter follower circuit for clarity
• Frequency Response: DC – 35,000 Hz (+0, -3 dB)
• Harmonic Distortion: 0.01% or less at 1 kHz/100 V r.m.s.
• Amplification: 58 dB
• Maximum Output Voltage: 280 V r.m.s. at 1 kHz
• Input Impedance: 25 kΩ (RCA input)
• Bias Voltage: PRO 580 V DC
• Signal-to-Noise Ratio: >100 dB (A-weighted, at maximum output)
• Input Terminals: RCA x 1 for versatile connectivity
• Output Terminals: Parallel RCA output x 1
• Electrostatic Outputs: One 5-pin PRO bias connector
• Power Supply: AC adaptor included, 230V, 50 Hz
• Power Consumption: 10 W
• Operating Conditions: 0°C to 35°C, <90% humidity (non-condensing)
• Chassis Material: Aluminium extrusion with 3 mm front panel
• Volume Control: Precision rotary knob for smooth adjustment
• Dimensions (W x H x D): 132 x 38 x 153 mm
• Weight: 540 g

Click here for more info.

Elevate your audio with the Stax SRM-270S Electrostatic Headphone Amplifier at Len Wallis Audio. Browse our curated collection of Stax products here or visit our Lane Cove showroom to audition this exceptional unit. Contact us today to secure the Stax SRM-270S Electrostatic Headphone Amplifier and experience electrostatic sound at its finest.
